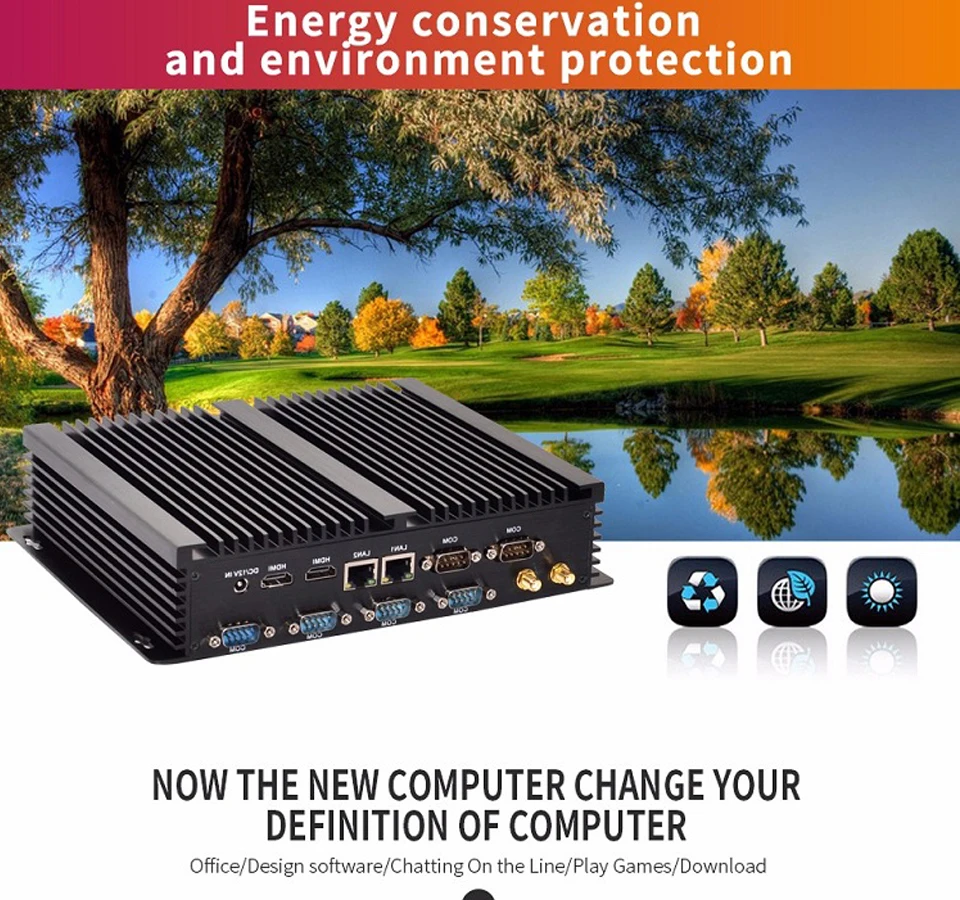

6 RS232 COM Port Dual HDMI Industrial 2 Ethernet Mini PC with Intel i3 4005u 4010u i5 4200u i7 4510u Processor.

Availability: In stock

US $253.50

Cheap And Discounts 6 RS232 COM Port Dual HDMI Industrial 2 Ethernet Mini PC with Intel i3 4005u 4010u i5 4200u i7 4510u Processor Enjoy ✓Free Shipping Worldwide! ✓90 Days Buyer Protection. ✓Easy Return. ✓Money Back Guarantee.

Product Discription










This Mini PC motherboard can install 4 types of processor:



CPU Intel Corei3 4010U or i3 5005U2 core 4 threads 3MB cache 1.7GHz TDP 15W Graphics HD 4000.(Ship Randomly per the stock)


CPU Intel Corei5 4200U2 core 4 threads 3MB cache 1.6GHz Max 2.6GHz TDP 15W Graphics 4000.


CPU Intel Corei7 5550U or i7 5500U2 Core 4 threads 4MB cache 2.0Ghz Max 3.0Ghz TDP 9.5W Graphics 6000.(Ship Randomly per the stock)


CPU Intel Celeron2955U2 Core 2 threads 2MB cache 1.4Ghz  TDP 15W Intel HD Graphics.



How to select Configuration?


For example:


1. You click " No Ram No Storage" from Color and "Intel Core i3 4010U" from Bundle, we will ship the mini pc with processor i3 4010U but no ram no storage included and No O/S to you.


2. You click "No Ram No Storage " from Color and "Intel Core i5 4200U" from Bundle, we will ship the mini pc with processor i5 4200U with NO RAM NO SSD or HDD and you need buy the RAM and SSD or HDD in your local and install OS by yourself.

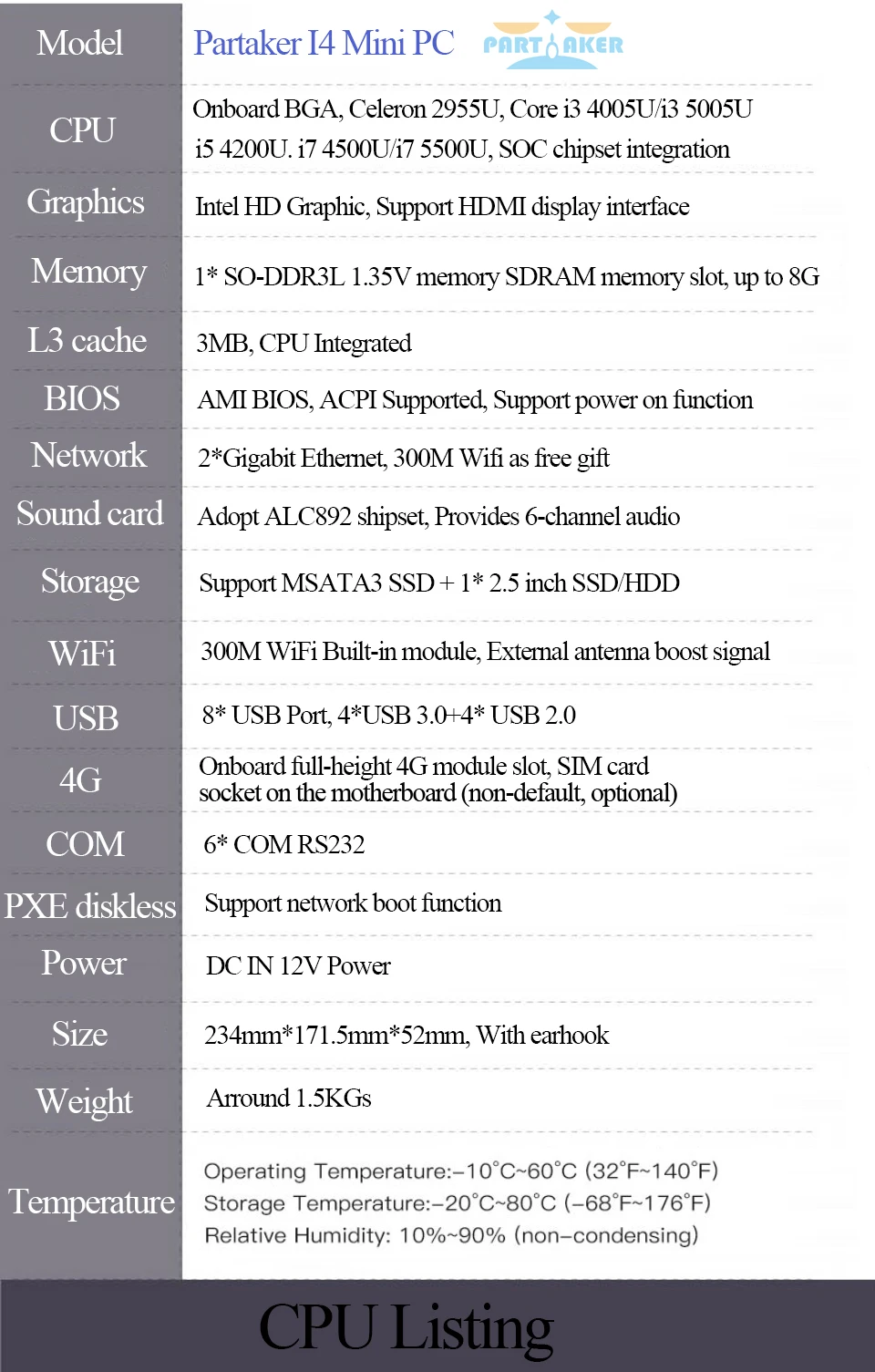

Model

I4

General

CPU

Onboard Intel Core i3 4010U & i5 4200u & i7 4510u

Operating System

Windows (OEM) or Linux

Memory

1* DDR3L  SDRAM Memory Slot, Max to 8G

MemoryType

DDR3L1333/1600LPDDR1333/1600

Storage

SSD: 8GB/16GB/32GB/64GB/128GB/256GB/512GB

HDD:80GB/160GB/320GB/500GB/750GB/1TB

Chipset

Intel QS77 Express

Processor Details

CPU

Intel Core i3 4010U

GPU

Intel® HD 4000 Graphics, support Blu-ray 1080P

Core code

Haswell

Technique

22nm

L1 data cache

2*32 KB

L2 data cache

2*256KB

L3 cache

3MB

Characteristic

MMX, SSE,SSE2,SSE3, SSE4.1,SSE4, AVX

BIOS

AMI BIOS, ACPI Supported

Supportcallsonfunctionautomatically

SupportWake-On-LAN

Function

Hyper-Threading, Virtualization Technology, 64 bit computing

Network Card

2* Intel 1000M 82574L Lan Ports

Audio Card

ALC892 HIFI

6channelsound

Ethernet

10/100/1000 BaseT Lan

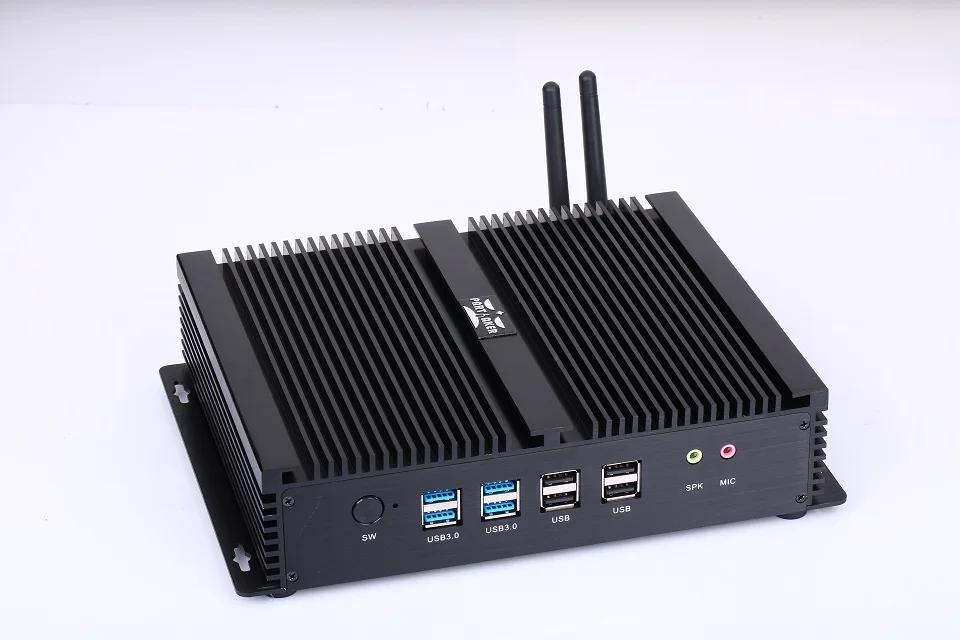

WiFI

With dual antenna, 802.11b/g/n(300M WiFi as Default)

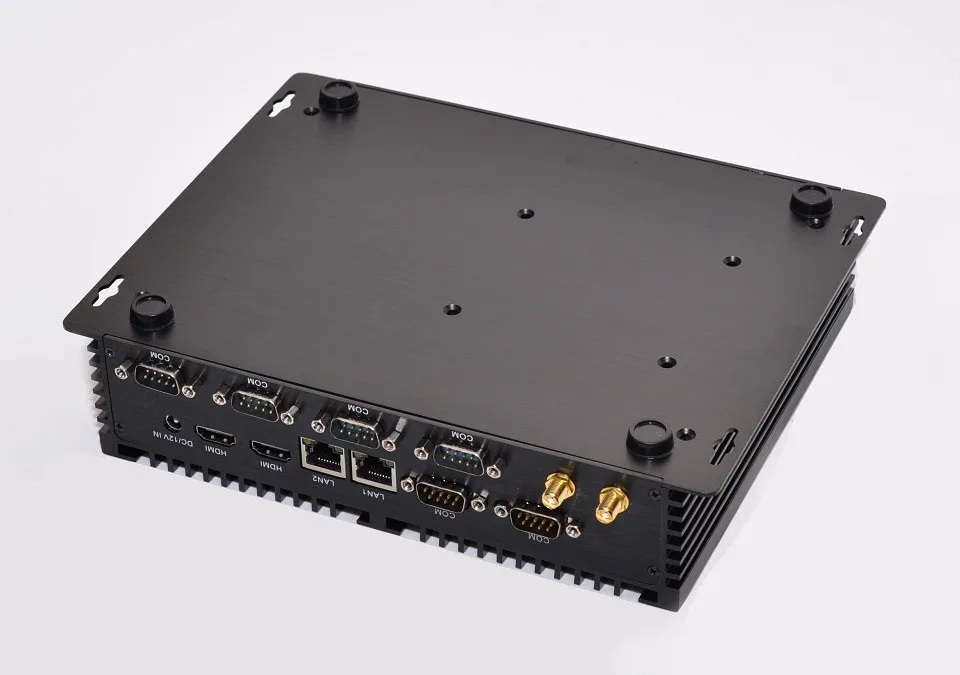

I/O Ports

Display Phort

2*HDMI Ports

USB Port

4* USB3.0

4*USB2.0

COM Port

6 COM Port with RS232

SATA Port

1* MSATA 3.0, 6Gb/s;

1*SATA3.0,6Gb/s

Mini PCIE

1*MSATA SSD

1*WiFiModule

Ethernet

2* RJ45 Gigabit LAN Port

Power input port

1* DC12V IN

Power and Working Environment

Input

DC100-240V  AC/50-60Hz

Output

DC 12V~19V/6A

Consumption

15W

Operating Temperature

0/70 Centigrade(32F~140F)

Storage Temperature

(-20/+80)Centigrade

Relative Humidity

10%~90%(non-condensing)

Product Dimension&Details

Noise

Fanless System

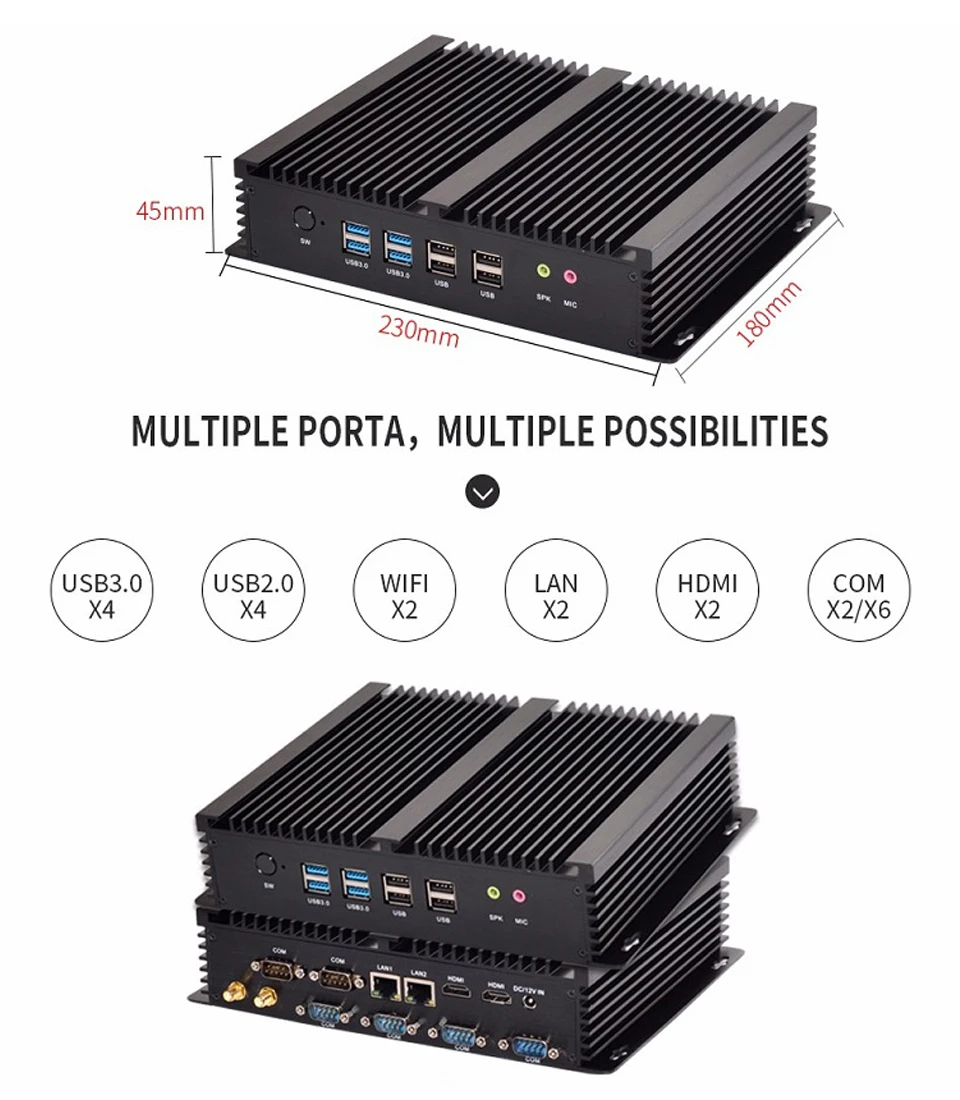

Size

17.5X21X4.5cm

Weight

2.5KG

Shell

Black Color

Package Box

Neutral Color Box or INCTEL Color Box

Content

Mini PC device, Power Adapter, Desk base, Antennas
